Never Miss a Critical View

Continuously monitor underwater surroundings in real time.
Watch Video

Battelle HorizonVue™ M360 Video System

Never miss a critical view again with the Battelle HorizonVue™ M360 Video System. The Battelle HorizonVue camera’s unique field of view and real-time interactive video provides never before available control of the workspace.

No matter the operating environment, our 360 imaging technology provides more information than has been available before. What have you been missing?

Applications

HorizonVue allows ROV operators to inspect subsea equipment and perform detailed tasks in complex operating environments with increased efficiency and effectiveness. Submarines that need dockside security or quick, bolt-on situational awareness while underway are able to quickly gain a full 360 view to manage contacts and record any event that occurs near the sub.

Never worry about missing a critical view again.
Contact one of our experts today to learn more.
Contact Us

Features

HorizonVue’s camera and software records all 360 degrees of the scene simultaneously. When the video is played back – use the digital pan and tilt window to explore the immersive 360° image to investigate what can be easily missed by the array of cameras typically required.

The system offers:

  • Control and video of system over Ethernet connection for ultra-high resolution
  • Continuous 360-degree video
  • User-defined areas of interest and digital zoom
  • Operator-selectable resolution and frame rate for data management
  • Software capable of queuing separate pan, tilt and zoom (PTZ) camera views

More than a camera, the HorizonVue Video System also includes custom, interactive PTZ playback software. The video system is made up of:

  • 360-degree deep water camera
  • Real-time video management software for camera control
  • Monitoring software for multiple users to access the video feed simultaneously
  • Interactive playback software

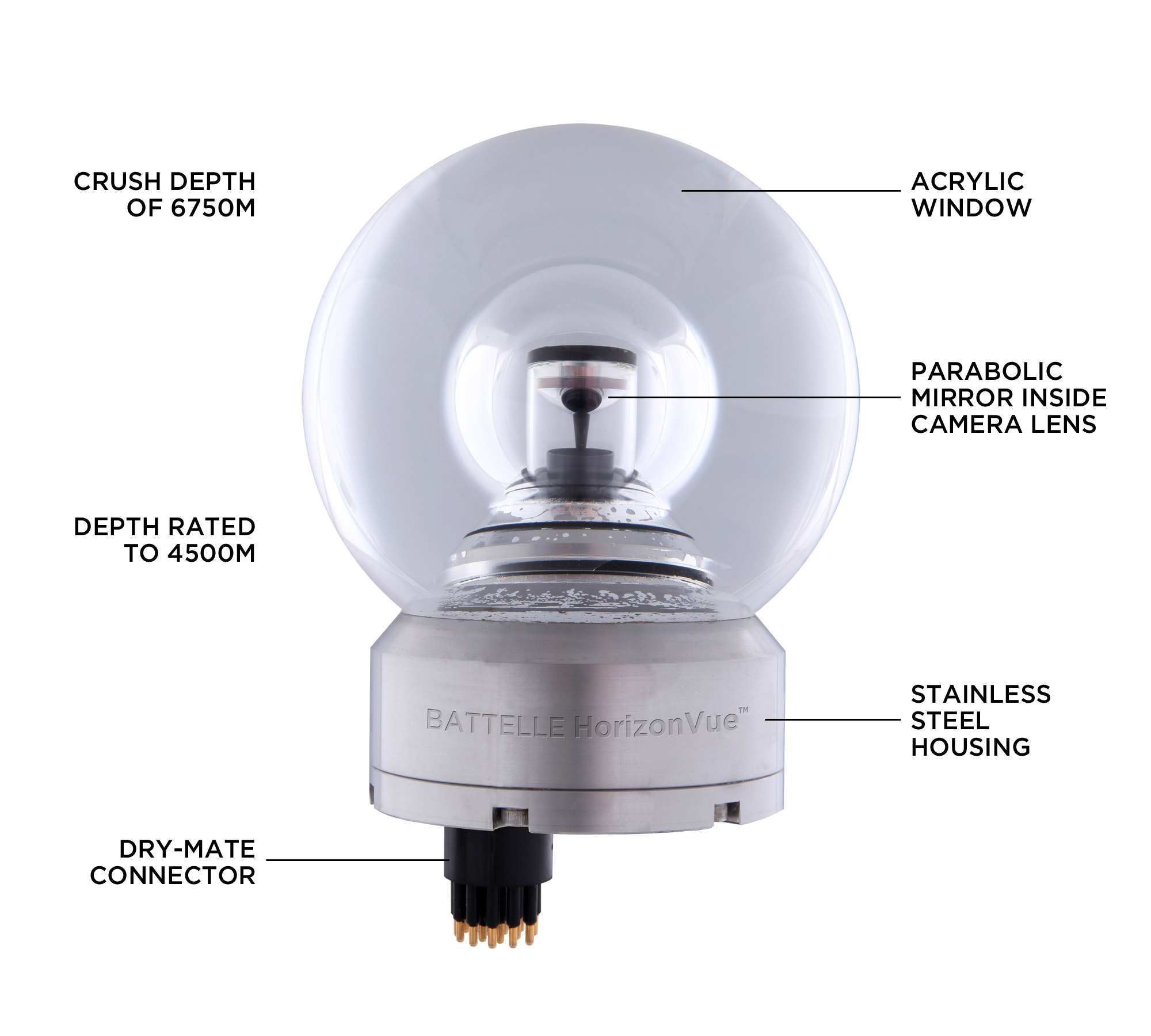

HorizonVue device with tech labels

Benefits

Easily retrofitted on vehicles already in use or incorporated into newly built platforms using the COTS connector of choice, the HorizonVue camera replaces multiple cameras with one device that is lighter, uses less power and has no moving parts.

Advantages include:

  • Complete 360-degree view of surroundings and contacts
  • Real-time video
  • Anytime interactive virtual PTZ playback
  • Both ROV manipulators are captured in a single image
  • No “fisheye” distortion in PTZ boxes
  • No moving parts
  • Low power
  • Lightweight

The benefits continue onshore with digital pan, tilt and zoom during playback through our interactive software. Not just for use underwater, our unique lens technology eliminates the need for corrective optics so that objects appear the same in air or water.

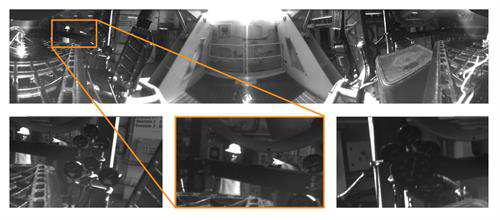

graphic showing capabilities of PTZ
Isolate objects of interest with virtual pan, tilt, zoom (PTZ)
